Overview

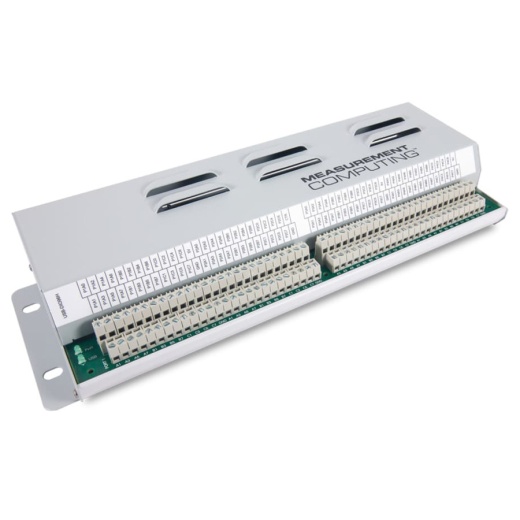

The Digilent USB-DIO96H is a high-performance digital I/O USB device designed to meet the demands of high-channel count digital I/O requirements. With 96 channels of digital I/O, this device provides high current, logic-level, bidirectional digital I/O and counter operation, making it ideal for a wide range of applications.
Key Features
The USB-DIO96H features four 50-pin IDC-type headers, providing easy access to the 96 channels of digital I/O. The device operates on a 5.5 V input voltage and can source 24 mA and sink 64 mA of current. Additionally, the device includes a 32-bit event counter and is externally powered with an included 5 VDC power supply.
Benefits
The USB-DIO96H offers several benefits, including high-channel count digital I/O, high current outputs, and a rugged metal enclosure that can be mounted on a DIN rail or bench. The device is also designed to emulate 82C55 mode 0, making it compatible with a wide range of systems.
What's in the Box
The USB-DIO96H comes with a USB cable, power supply, and AC input cord, making it easy to get started right out of the box. Additionally, the device includes a DAQami Quick Start guide and a printed insert to help you get started quickly.
Product Compliance
The USB-DIO96H is compliant with HTC: 8471.80.9000 and ECCN: EAR99, ensuring that it meets all necessary regulations and standards.
