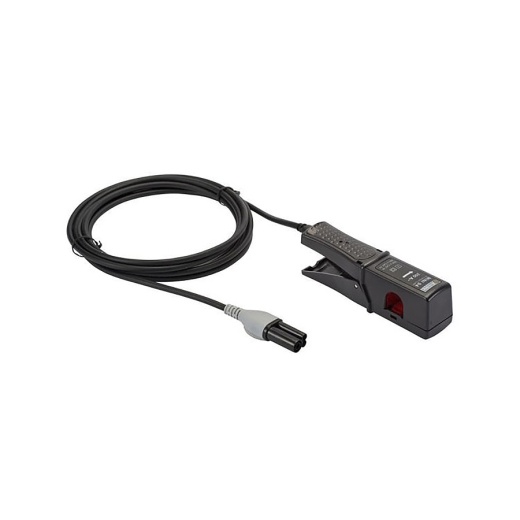

Aemc Instruments Mn94 Ac Current Probe, 50 Ma 200 Aac, For Use On Pel 52, 8345 Only

• Maximum Conductor Size: 0.25 inch (16 mm)

• Current Range: 50 mA 200 AAC

• Frequency Range: (48 to 65) Hz

• Sensor length: 10 ft (3 m)

• Type A current sensor

• Double Insulated

• IP20 Ingress Protection (Ip)

• Equipped with a molded 4-pin connector

• Compatible with PowerPad IV 8345 And PEL 52

Small and compact, the MN94 clamp is a current clamp for measuring AC current without disconnecting the circuit to take measurements. It measures commercial power frequencies up to 200 A with a class 0.2 accuracy. Its excellent accuracy (gain and phase) make it ideal for current measurements with power and energy analyzers. In particular, it can be used to check electrical meters.

• MN94 Current Probe
