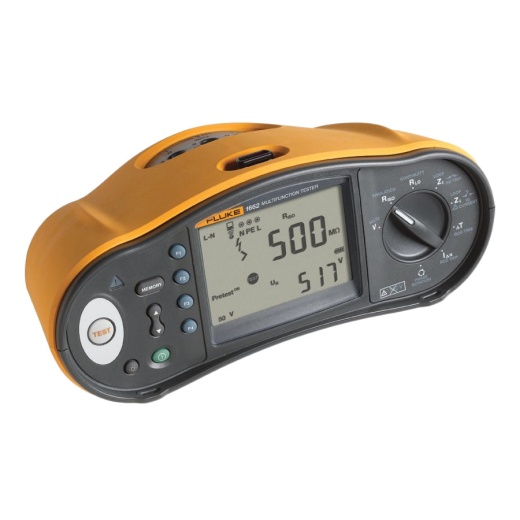

OPEN BOX - Fluke 1662 Basic Multifunction Installation Tester
A solid, basic installation tester, the 1662 gives you Fluke reliability, simple operation and all the testing power you need for day-in, day-out installation testing. It tests to all local regulations and is easy and intuitive to use. Additional helpful features like the On/Off switchable auto-start for RCD and loop test, and self-test save time and give you more confidence in your results.
1662 Measurement Functions
- Voltage (t-rms) and frequency
- Wiring polarity checker, detects broken PE and N wires
- Insulation resistance
- Continuity and resistance
- Measure motor windings with continuity test (at 10 mA)
- Loop and line resistance
- Prospective earth fault current (PEFC/IK)
- Prospective short-circuit current (PSC/IK)
- RCD trip time
- RCD trip current (ramp test)
- Measures trip time and current for RCD type A and AC in one test
- RCD variable current
- Automatic RCD test sequence
- Phase sequence test
- On/Off switchable auto-start for RCD and Looptest NEW
- Self-test, Illuminated display, Memory
- NO IR-USB and BLE interfaces (when used with optional Fluke DMS and FVF software)
1660 Series Installation Testers
The new Fluke 1660 Series Installation Testers are the only installation testers that help prevent damage to connected appliances. Models vary not only by interfaces available for use with Fluke DMS and FVF software but also by measurement functions.
Series Highlights
- Tests voltage and frequency
- Checks wiring polarity to detect broken N wires
- Measures insulation resistance and loop and line resistance
- Measures motor windings with continuity test
- Calculates prospective earth fault current (PEFC/IK) and prospective short-circuit current (PSC/IK)
- Measures trip time and current for RCD type A and AC in one test
- Measures RCD variable current Provides automatic RCD test sequence
- Includes Z-max memory for loop tests to support easy evaluation of the highest loop test value
- Provides unique zero adapter for fast, reliable and accurate test lead and mains cord compensation Includes a phase sequence indicator
Features and Specifications
- AC voltage measurements:
- Range: 500 V
- Resolution: 0.1 V
- Accuracy: 45 Hz - 66 Hz 0.8% + 3
- Input impedance: 360 kilohm
- Overload protection: 660 V rms
- Continuity testing (RLO) Range (autoranging): 20 ohm / 200 ohm / 2000 ohm
- Resolution: 0.01 ohm / 0.1 ohm / 1 ohm
- Open Circuit Voltage: >4 V
- Computation: Prospective earth fault current (PEFC) or Prospective short circuit current (PSC) determined by dividing measured mains voltage by measured loop (L-PE) resistance or line (L-N) resistance, respectively.
- Prospective earth fault current, PSC test:
- Range: 1000 A / 10 kA (50 kA)
- Resolution: 1 A / 0.1 kA
- RCD types tested: A, AC, G, S
- CAT III / 500V; CAT IV 300V
- Rated IP-40
Models are:
- 1662 - Basic Multifunction Installation Tester, No IR-USB or BLE interfaces
- 1663 - Pro Multifunction Installation Tester, IR-USB interface only
- 1664 FC - Multifunction Installation Tester, Both IR-USB/BLE, with Auto Test, Insulation PreTest, Fluke Connect compatibility
What's in the Box
- 1662 Basic Multifunction Installation Tester
- 6x AA (IEC LR6) cell batteries
- C1600 hard carrying case
- Zero adapter
- Heavy duty mains cord
- STD standard test lead set
- Padded carrying and waist strap
- Quick reference guide
- TP165X remote control probe and lead
- User’s manual
