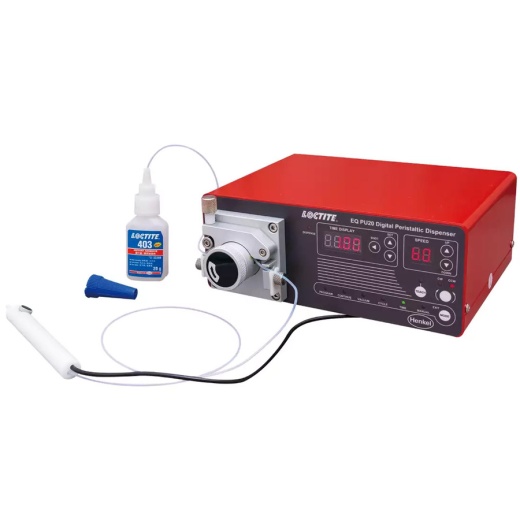

LOCTITE® PU20 Digital Peristaltic Dispenser is a reliable and effective benchtop bottle dispenser of 1-part, low-viscosity adhesives. It is great for precise dosing or applications that require a specific flow rate. This dispenser is electro-mechanically operated and does not require the use of an air source. It transfers liquids directly from the bottle to a handheld dispense valve. This dispenser provides volumetric dispensing of non-thixotropic materials such as cyanoacrylates, anaerobics, UV products, or solvents up to a viscosity of 5,000 mPa·s. It can be used as a manual or semi-automatic work station.
- Precise volumetric dispensing of LOCTITE adhesives from small bottles
- Air-free dispensing reduces premature curing and clogging of product
- Teach In and program memory saving function
- Digital motor speed adjustment and display
- Included in the box: (1) PU20 Digital Peristaltic Dispenser; (1) manual applicator (1) tip adapter 1.6 mm (0.06"); (1) tip adapter 2 mm (0.08"); (1) tip adapter 2.5 mm (0.1"); (1) tip adapter 3.2 mm (0.13"); (1) tubing, black, ID 1.7 mm x 0.4 mm (0.07" x 0.01") (OD 2.5), 1 m (3.3 ft); (1) tubing, black, ID 2.4 mm x 0.4 mm (0.09" x 0.01") (OD 3.2), 1 m (3.3ft); (1) tubing, clear, ID 1.4 mm x 0.3 mm (0.05" x 0.01") (OD 2.0), 1 m (3.3ft); (1) tubing, clear, ID 1.0 x 0.3 mm (0.04" x 0.01") (OD 1.6), 1 m (3.3ft); (1) operating manual.
